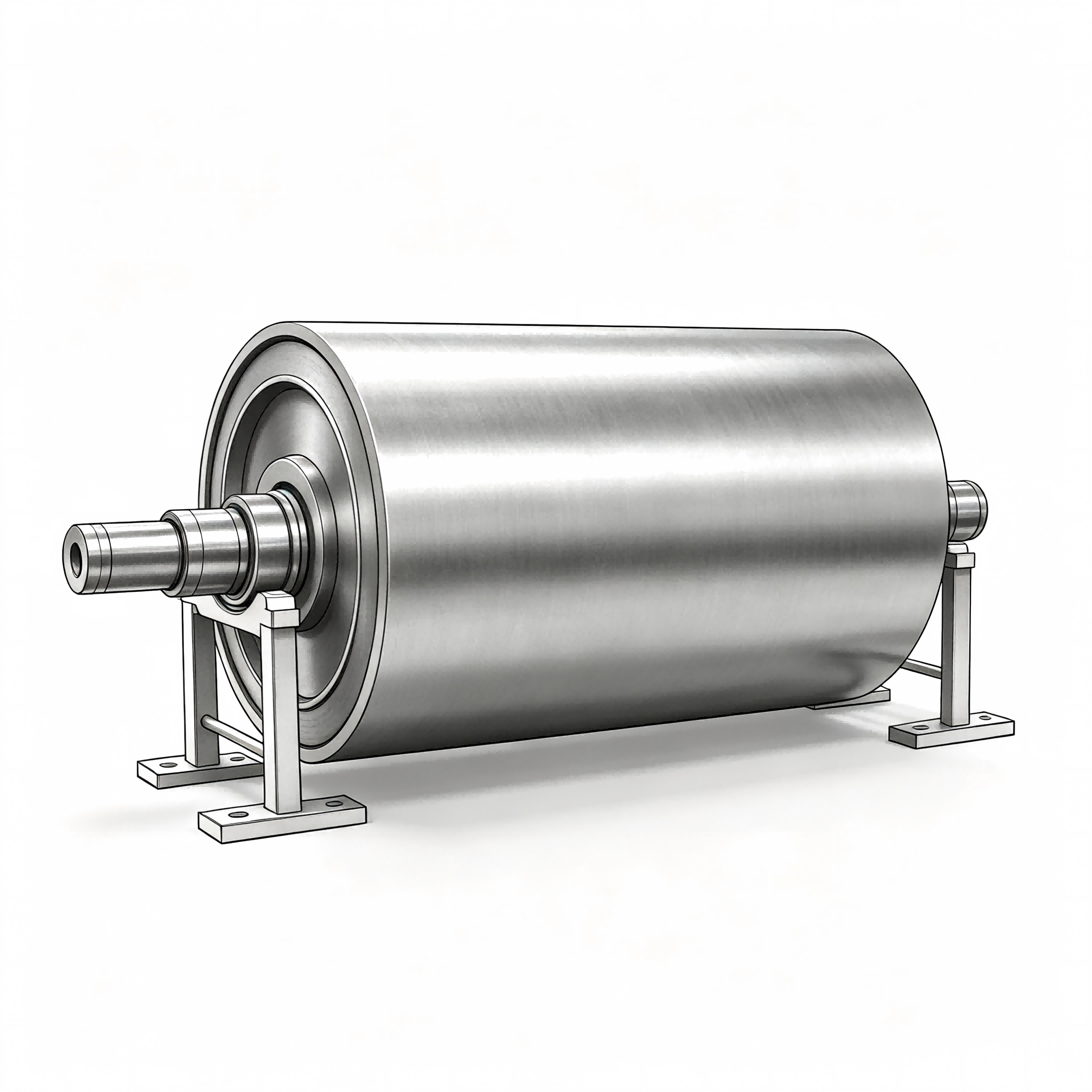

Furnace Deflector Roll

Heavy-Duty Top & Bottom Furnace Deflector Rollers

• Overview: Guide strip steel through 180℃ turns at the top and bottom passes of vertical annealing furnaces. Engineered for maximum fatigue resistance under continuous thermal cycling and high strip tension.

• Key Features:

  • Centrifugally cast heat-resistant alloy barrels with forged 42CrMo shaft journals.

  • High-precision dynamic balancing reduces cyclic stress on furnace structure and bearings.

  • Crowned profile design helps maintain natural strip centering.

• Technical Specifications:

  • Diameter: Customized

  • Temp Rating: 400 - 900℃

  • Dynamic Balance: ISO 1940 Grade G1.0

• Applications: Top roll houses and bottom turnaround chambers in vertical furnaces.
