Godet Roller for Fiber

Godet Roller Introduction:

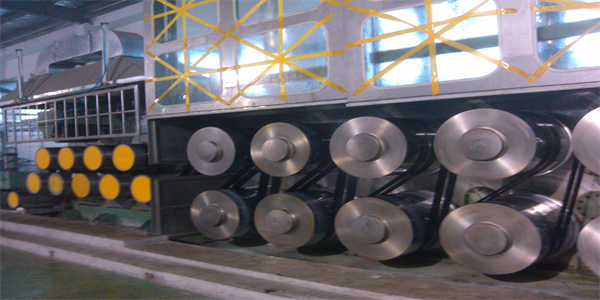

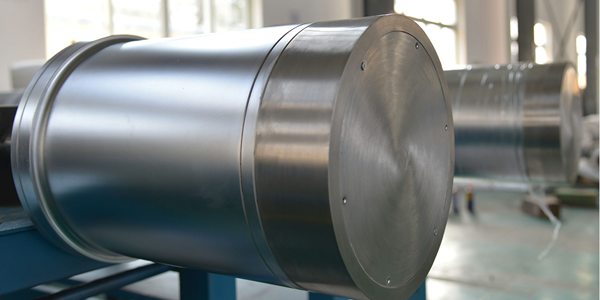

Synthetic fiber heat treatment rollers (referred to as hot rollers or godet rollers) are a crucial process in the production of new synthetic fibers with high strength, excellent heat resistance, and unique texture, from aerospace applications to civilian clothing fabrics. In this process, induction-heated godet rollers rotate at high speeds to precisely heat-treat the fibers, aligning their molecular alignment and forming uniform crystals. This results in high-quality materials with a uniform texture.

Godet Roller Specification:

Dimension      Φ100~450mm×L200~460mm              φ700~800mm×L700~1000m
Temperature     100~280℃                                                    max 420℃
Linear Speed     max 5000m                                                 min  max 500m/min
Surface Treatment Hard-chrome plating/Ceramic coating/mirror finish/mirror/mat finish

Godet Roller Main Application:

Synthetic fiber
Carbon fiber
Spandex
Aramid fiber
Nylon fiber
Polypropylene fiber
Polyimide fiber
PPS fiber
PEEK fiber
