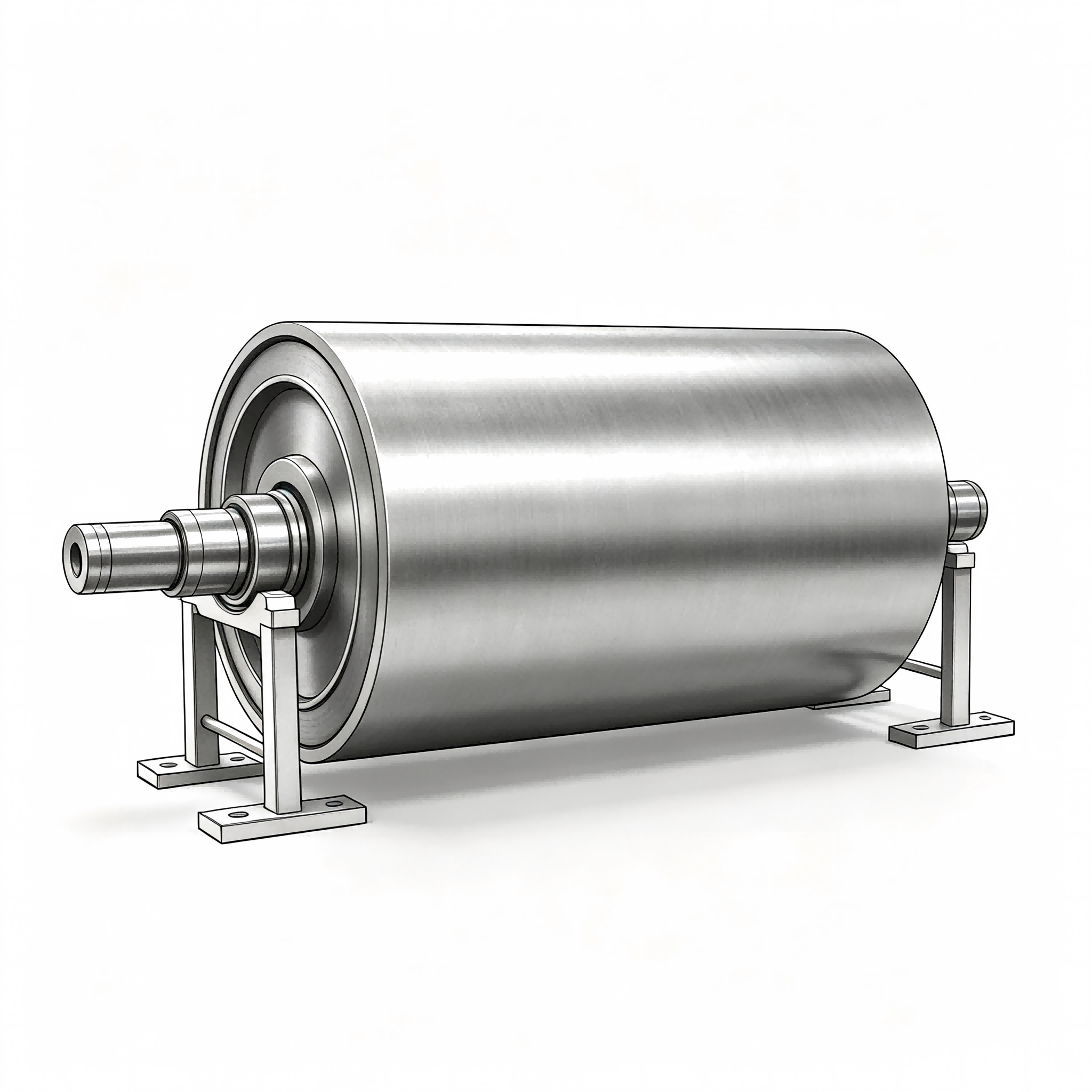

High-Temperature Furnace Steering Roll

In-Furnace High-Temperature Steering Roll Assemblies

• Overview: Maintain perfect strip tracking inside tall vertical annealing furnaces. Our in-furnace steering rolls operate inside protective atmospheres  at temperatures up to 850℃, utilizing heat-resistant pivoting mechanisms.

• Key Features:

  • Heat-resistant alloy roll body with anti-slip ceramic coatings.

  • Flexible expansion joints allow smooth tilting without breaching furnace atmosphere seals.

  • Water-cooled external hydraulic swiveling actuators.

• Technical Specifications:

  • In-Furnace Temp: Up to 850℃

  • Atmosphere: Protective N2+H2 (3-15%)

  • Steering Range: ±3°

• Applications: Top and bottom steering locations in vertical CAL and CGL furnaces.
