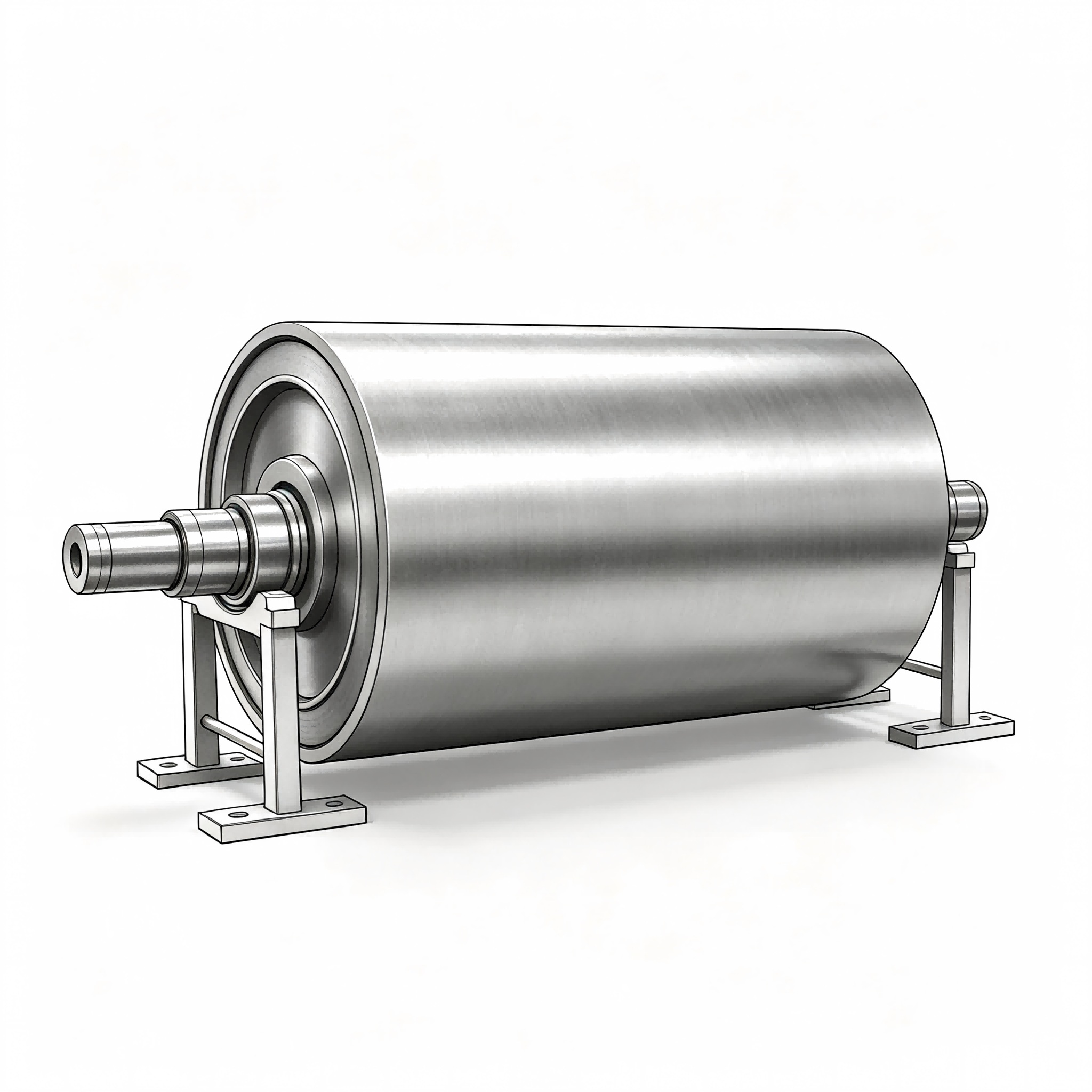

S-Type Tension Bridle Roll

High-Tension S-Type Bridle Roll Assemblies for CAL & CGL

• Overview: Our S-type tension bridle rolls establish and isolate process tensions between uncoiling, looper storage, and furnace sections. Designed with high friction coefficients to prevent strip slippage during speed transitions.

• Key Features:

  • High-torque forged steel cores with specialized tungsten carbide (WC) or rubber coatings.

  • ISO 1940 G1.0 dynamic balancing eliminates high-speed vibration.

  • Dual-drive compatibility for stable tension multiplication up to 1:5 ratio.

• Technical Specifications:

  • Diameter Range: 600 - 1200mm

  • Surface Coating: Thermal Sprayed / PU Rubber

  • Max Strip Tension: Up to 250 kN

• Applications: Entry, process, and exit tension bridle stations in processing lines.
